Chap 1 Intro

  • B2C business-to-consumer, B2B, G2C government-to-consumer, C2C comsumer-to-consumer, P2P peer-to-peer
  • IPTV, IoT, Ubiquitous computing(分布式计算), Power-line network(using powerline to tranport data)
  • Mobile and broadband access network, data-center network, transit network, enterprise network
  • metcalfe's law: Explains how tremendous Internet popularity comes from its size
  • NFC near field communication
  • CDN content delivery network
  • ISP Internet service provider
  • VoIP voice over IP
  • type: Broadcast=multicase, p2p link=unicast; scale
  • twisted pair双绞线coaxial cable同轴线fiber, radio spectrum
  • PAN personal area network, LAN, MAN Metropolitan AN, WAN wide(isp, vpn is wan), internetwork, Internet
  • arpanet(dvanced Research Projects Agency), nsfnet, www & mosaic !important
  • HFC hybrud viber-coaxial(use DOCSIS Data over cable service interface specification): home end: modem, cable end: CMTS cable modem termination system; modem: modulator demodulator
  • E-UTRAN (Evolved UMTS Terrestrial Radio Access Network) EPC (Evolved Packet Core) S-GW (Serving Network Gateway) P-GW (Packet Data Network Gateway) HSS (Home Subscriber Server)
  • SIM (Subscriber Identity Module)
  • 1G analog voice, 2G digital voice, 3G d-voice + data, 4g, 5g: diff in frequency
  • Package switching connectless(aka.datagram, postal sys) circuit switching connection-oriented(message sequence/byte stream/unreliable connection(ep. VoIP))
  • 208.11 wifi
  • Goals: Reliability, Resource Allocation, Congestion problem, Evolvability, Security
  • Protocal stack, Service primitives(operations) Service(between interface) vs protocal(in layer)
  • OSI(modle comes first) !important
    • physical bits bit
    • data link frame
    • network package
    • transport segment
    • session
    • presentation
    • application
  • TCP/IP(protocal comes first) !important
    • link
    • internet
    • transport
    • application
  • loss, throughoutput, delays: !important
    • processing(CPU time)
    • queueing
    • transmission(message length)
    • propagation(wire length)
  • history !important
    • Leonard Kleinrock (packet-switching 1961-1964)
    • Ray Tomlinson (the 1st email program in 1972)
    • Vinton Cerf and Robert Khan (TCP/IP, 1974)
    • Tim Berners-Lee (Web, 1989)
    • Marc Andreessen (GUI browser Mosaic, 1993)

Chap 2 Physical layer

  • bandwidth(Hz), a pysical property of a medium or bandwidth/datarate(bps)
  • baseband: 0-to-max
  • passband: shifted in frequency space
  • modulation: amplitude, frequency
  • Error rate
  • baud rate = symbol rate
  • Nyquist Bandwidth: focus on a given bandwidth, the fastest data rate without two symbols effecting eachother, $C=2B\log_2(V)$, property of sinc(x)=$\cfrac{sin(x)}{x}$ !important
  • Shannon Capacity: focus on the effect of noise, $C=B\log_2(1+SNR)$, note about SNR is normal or db !important

transmission media

  • Guided/wired transmistion:
    • persistent storage(aka truck load of data)
    • Twisted Pair: full duplex, half duplex, simplex
    • Coaxial cable
    • Powerline
    • Fiber optic
  • Wireless
    • Radio Transmission RF
    • Microwave: very straight, delay wave may phase shift and cancel the direct wave
    • Infrared: short range
    • Light
  • Satellite

Digital modulation

  • baseband transmit, passband transmit(frequency shift keying FSK, phase PSK (BPSK two phases, QPSK, 4 phases), amplitude ASK, combined(Grey code), QAM(Quadrature amplitude modulation: two wave with 90degree shift, +1, 0, -1)), multiplexing(carry many signal)
  • base band:
    • NRZ: 1is1,0is0
    • NRZi: invert on ones(USB)
    • Manchester: negedge 1 posedge 0(Ethernet)
    • Bipolar: invert on 1, 0is0, 1&-1is1
    • bit rate = symbol rate $\times$ bits per symbol
  • Scrambling: make data more random
  • Balanced signal: no dc component(ep. bipolar)
  • FDM Frequency division multiplexing
  • OFDM: use sinc in frequency space
  • TDM Time DM
  • CDM Code DM:
    • every station have a chip using walsh code
    • two chips inner product is 0
    • use inner product to get the corresponding vector(/8 be the data)
  • PSTN public switch telephone network
    • telephone-EndOffice: local loop
    • EndOffice-TollOffice: toll loop, trunk(use digital not analog)
    • toll-switchoffice-toll
    • modem: digital-to-analog - codec: End office

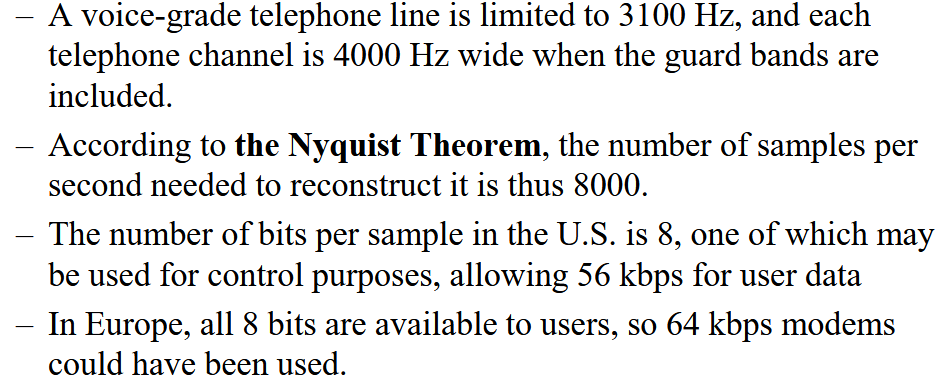

  • Nyquist Sampling Limit: 2 times frequency for data
  • alt text
  • circuit switching(connect) vs package switching(connectless)

mobile

  • cluster: a group that used all frequency possible
  • handoff: switch station
  • Framing, Error, Flow control
  • Unacknowledged connectionless service(realtime, low error), Ack conless service(unreliable), Ack con service(long & unreliable)
  • Byte count, Byte stuffing(PPP P2p protocal), Bit stuffing(USB), Code violation(an error to signal)
  • Hamming code: use m+r bit, use hamming distance to choose the closest as thr right one, to detect d errors, need distance d+1 code, correct need 2d+1 code
  • Minmal for m bit message need to handle all single error: for a n=m+r, every valid need n invalid, that means $(n+1)2^m \leq 2^n\rightarrow (m+r+1)\leq 2^r$

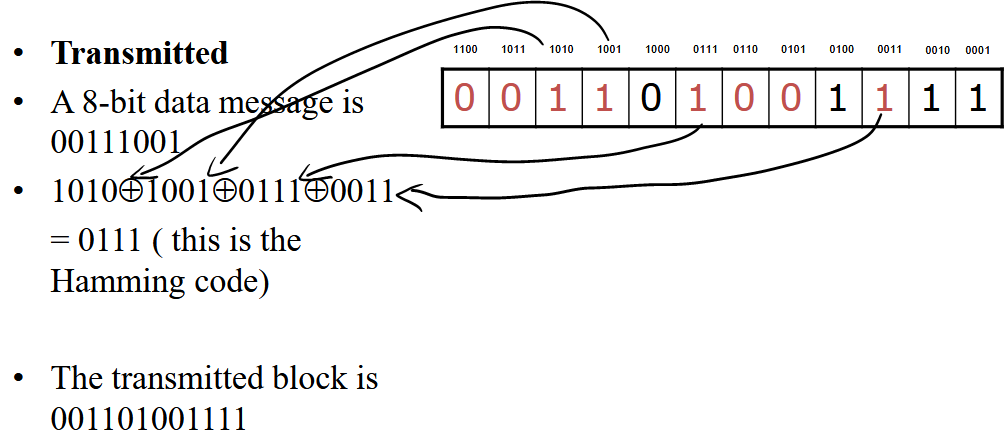

  • Hamming code: alt text the xored result will be the errored bit if non-zero
  • Conv code(n,m,K) from m bits to n bit using K-1 previous input block
  • Reed-solomon code, LDPC code
  • Error detect
    • parity: even parity: make even
    • interleaving & two-dimensional: get parity of different part
    • Cecksum:

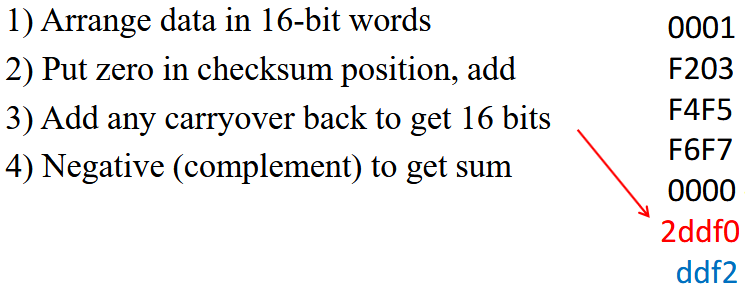

      • 16bit internet checksum: alt text, the reult of adding the check sum and normal will be ffff
      • CRC: add n-1 bit check sum that make the whole message divisable by the generator
  • simple protocal:
    • stop and wait, sender wait for an ack before sending again
    • stop and wait on noisy: sender have a timer, timeout and resent if no ack, sender have sequence number to check if dupe that ack failed
    • 1 bit sequence is enough(only one frame allow on air)
  • sliding window protocal:
    • Piggybacking: hook ongoing ack on the next data
    • 1 bit = stop and wait alt text
    • 一次最多传 2-way-tranmission-time/package length +1 个（第一个ack到达的延迟）

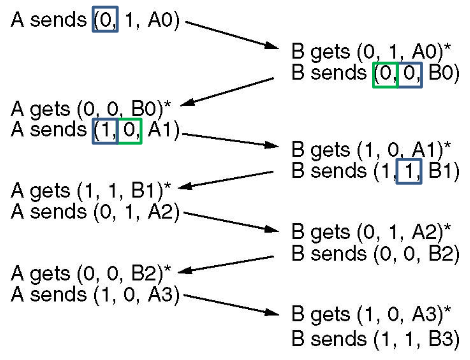

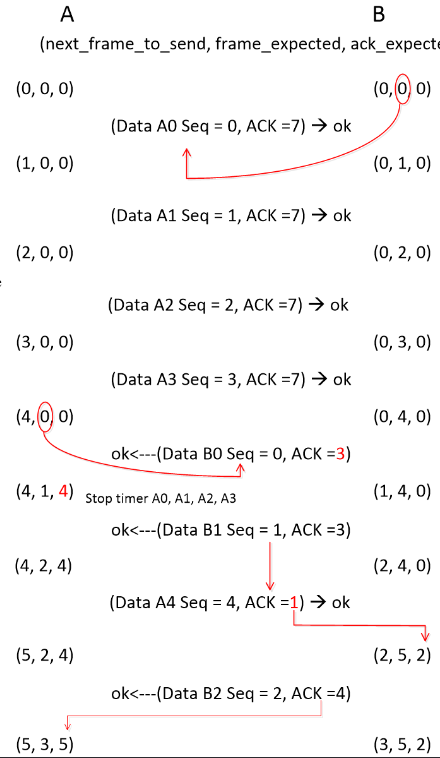

    • go back n:alt text
    • sequence count = window size + 1
    • selective recieve(NACK) can l=only have(window size / 2)
  • ADSL, SONET, PPP(state machined), DOCSIS

Chap 4 Medium Access Control sublayer

  • FDMA: divide into N portions and static
  • extern queueing thoery
  • Carry sense
  • ALOHA
    • pure: wait see if broadcasted by central, wait random if fail, vulnerable period=2T, max throughoutput at G=0.5 throughoutput=$0.5e^{-1}=18.4%$
    • slotted: max at G=1.0, throughoutput=$e^{-1}=36.8%$
  • 1-persistent CSMA(Carrier Sense Multiple Access) send on idle, wait random on collision
  • zero-persisent Check and send on idle, wait random and check again
  • p-persistent: for slotted, when idle have probability of p to send
  • CSMA/(C)ollision(D)etection: alternate idle and transmission, with slot time of 2*longest delay(at this point it is sure that no colission)
  • A-bitmap protocal, declear usage first
  • token passing, send message beforw passing token
  • binary counting: every one have a code, if someone have a larger code than you, stop and wait
  • limit-contention: contention is good at low load, collision-free is good at high load, group them to make sure every group have less than 5 station

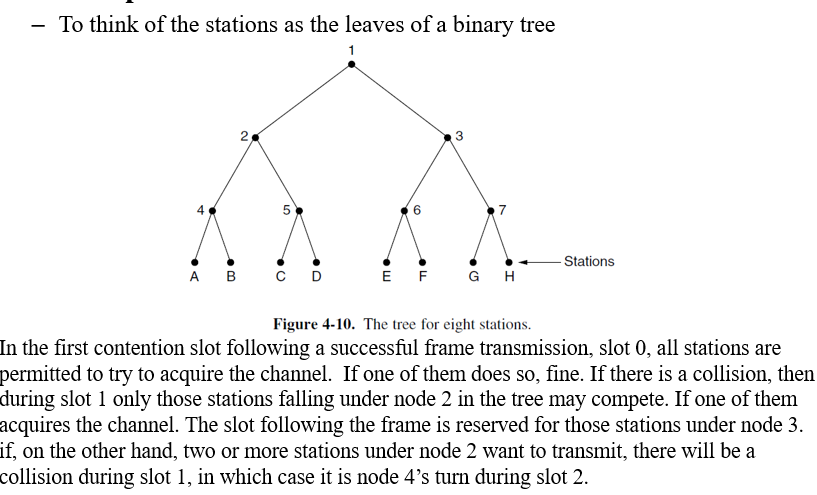

    • adaptive tree walking:alt text

Wireless !important

  • hidden ternmial(some one not in your range), exposed ternimal(some one can't effect your ap)
  • MACA Multiple Access with Collision Avoidance
    • hearing RTS: must wait long enough for CTS to arrive
    • hearing CTS: must wait for data to finish

Ethernet, 802.3

  • hub-star, connectionless
  • 8 byte preamble + 14 byte header
  • header = destmac, srcmac, type(ethernet, larger than 0x600)/len(802.3, leq than 0x600)
  • max data 1500bytes, min data 64bytes
  • crc checksum
  • binary expo backoff
  • n collision-> next time $2^n-1$ slots, max at 10 after 16 爆
  • hub is just gluing wires together, swtich can separate things
  • nBase-T -> nMbps

802.11 Wifi

  • CSMA/CA:
    • ack after finish, use ack to detect idle
    • DCF: every one do there own thing
    • PCF: AP cordinate
    • Physical sensing: idle just transmit, collison random time(For RTS)
    • Virtual sensing: both RTS and CTS cause others to NAV, a end of transmit(by node) or ACK(by station) will lift the NAV
    • Power: beacon frame used by ap for control
    • use different interval for different frames

Bridge

  • Spanning tree for no loop
  • everyone believe itself is root, broad cast choose lower to be root and jumps, same root choose shorter

Misc

  • 802.1Q: VLan

Chap 5 Network Layer

  • datagram and circuit based
  • forwarding, routing
  • routing algorithm: correctness, simplicity, robustness, stability, fairness and efficiency
  • global routing, decentralized routing
  • (L)ink (S)tate algorithm(dij)(OSPF), sink tree-> forward table

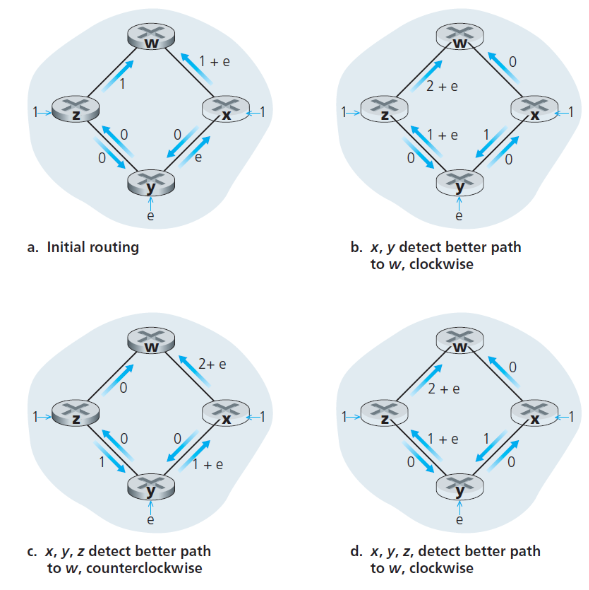

  • Oscillation for dynamicalt text
  • (D)istance (V)ector(RIP, BGP), 根据邻居信息进行动态计算，本身只有自己和邻居信息
    • problem: inf counting(pass through it self?)
    • gateway router, AS
    • flooding: broadcast to neighbour
    • controled flooding: ibkt broadcast unbroadcasted package
    • spanning tree
    • reverse path forwarding(check if it is the normally used one, pass if yes)
  • Anycast to any of the target
  • IPv4
    • 16 bit add up
  • The maximum payloads of different networks
    • Ethernet  1500 bytes
    • 802.11  2304 bytes (the maximum size of the frame body before encryption)
    • IP  65,515 bytes
  • Path MTU (Path Maximum Transmission Unit)
  • tranparent fragment vs untranparent(assmemble at end)
  • next fragment start at offset << 3
  • CIDR subnetting & route aggregation; use longest matching
  • 0.0.0.0=boot, 255.255.255.255=target, 127.0.0.1=this 127.0.0.0/8

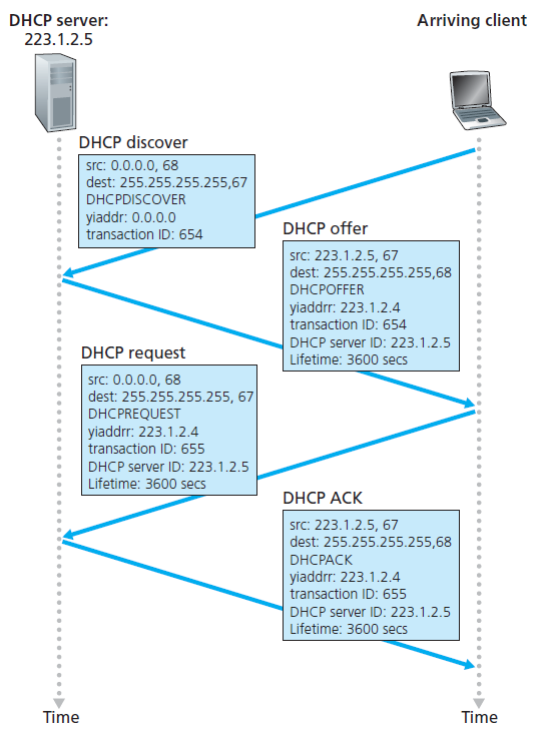

  • dhcp: udpalt text
  • ipv4 "::127.0.0.1"
  • ARP: broadcast using ff:ff:ff:ff:ff:ff, respond with unicast right address
  • rip: hop count, udp on 520, path limit 15

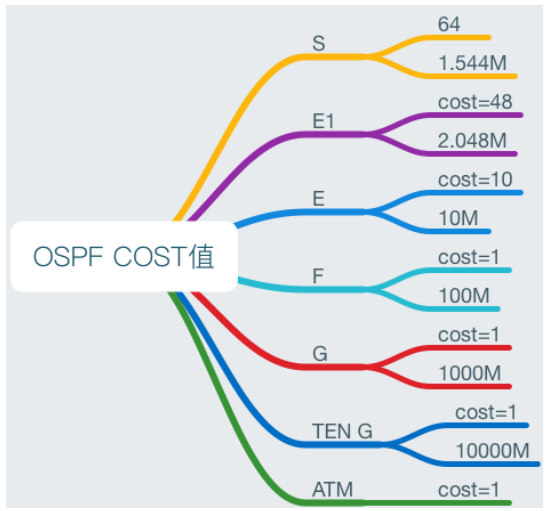

  • ospf: ip protocal 89, equal cost multipathalt text
    • stub area: only one area boundary router
    • backbone
    • designated router
  • BGP tcp 179
    • eBGP extern, iBGP internal
    • ASN ASnumber
  • Multiprotocol Label Switching MPLS(circuit based)
    • add header between layer 2 and 3
    • 4 byte long
    • change label on every hop

Chap 6 Transport Layer

  • connection based & connectionless
  • true end-to-end

UDP

  • header 8 bits, srcport dstport, length(not fully used because ip is 65515), checksum of everything(even with some ip header, add everything and ffff, pad data with zeros, protocal 17)alt text
  • RTP, DNS(53), SSDP

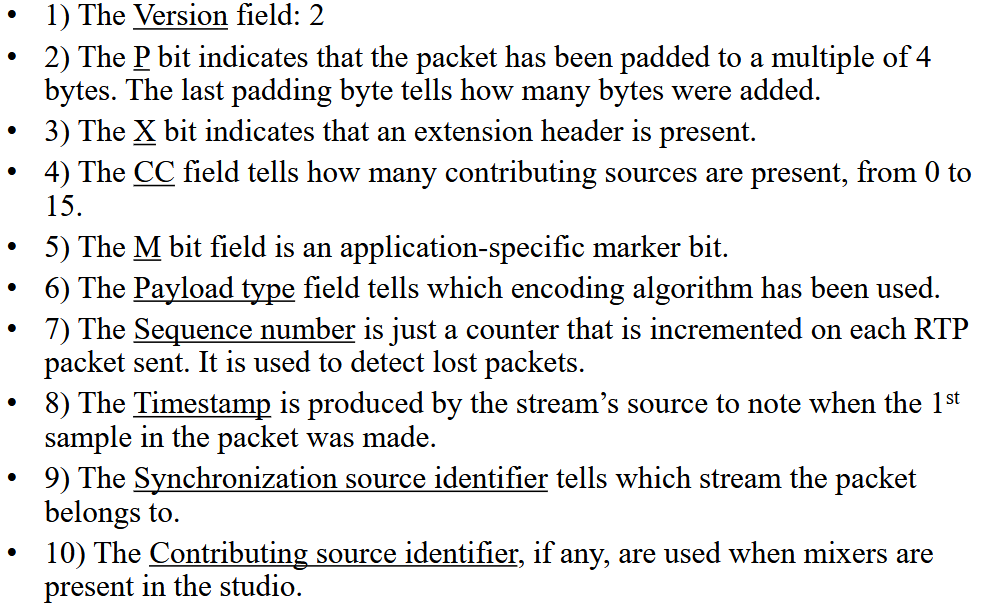

  • RTP
    • alt text
  • RTCP
    • like RTP, c for control

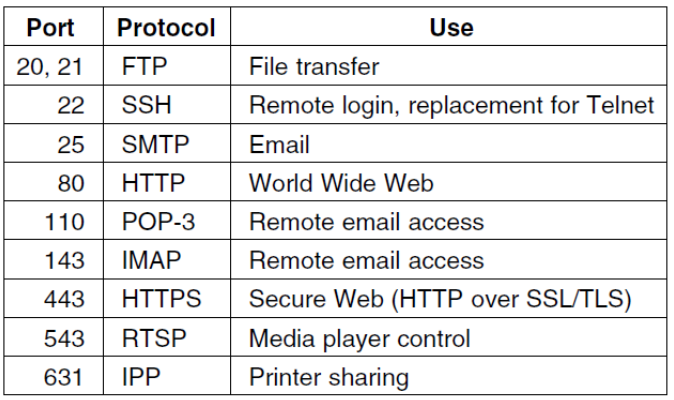

TCP

  • fullduplex p2p only
  • byte stream, no message boundary
  • Urgent flag
  • alt text
  • sequence number for every byte
  • ack num: next number i want
  • ECE Explicit Congestion E?? -> CWR congetional window reduced, URGent, ACK(valid ack num), PSH: no buffer on arrive, SYN on first two handshake
  • window size: how many can you send

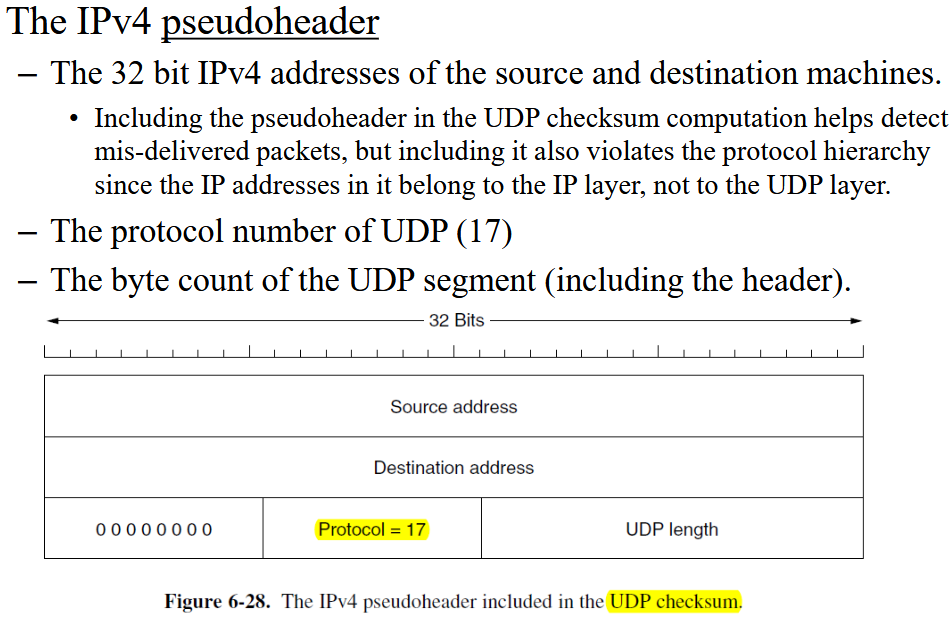

  • mandtory check some like udp with protocal 6
  • MSS default 536+20 bytes
  • SACK like NACK for ack after a lost package
  • SYN message treat as 1 byte length, so add 1 to ACK

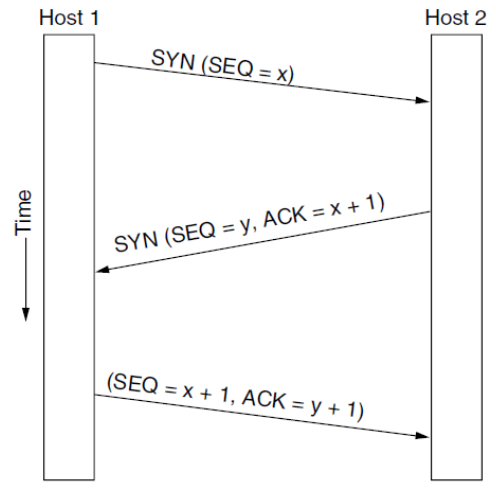

  • handshake alt text SYN, SYN+ACK, ACK, pure ack is length 0, pure ack can piggybacked to the first data, only request have ack=0
  • SYN flood and SYN cookie defense

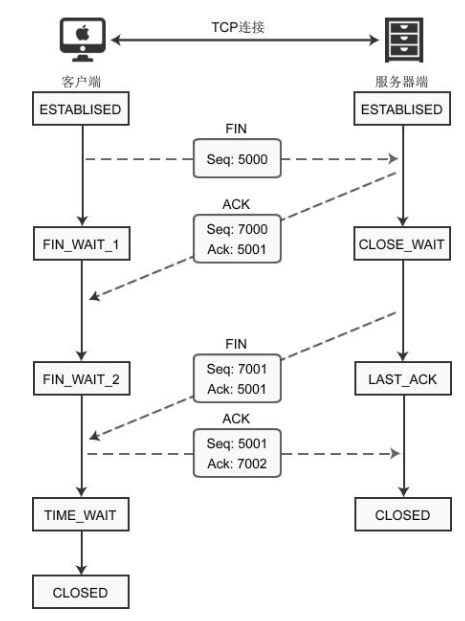

  • release(after fin, wait two packages and release even no ack, fin take one sequnce): alt text
  • TIME_WAIT for if final ack is lost, for two package life

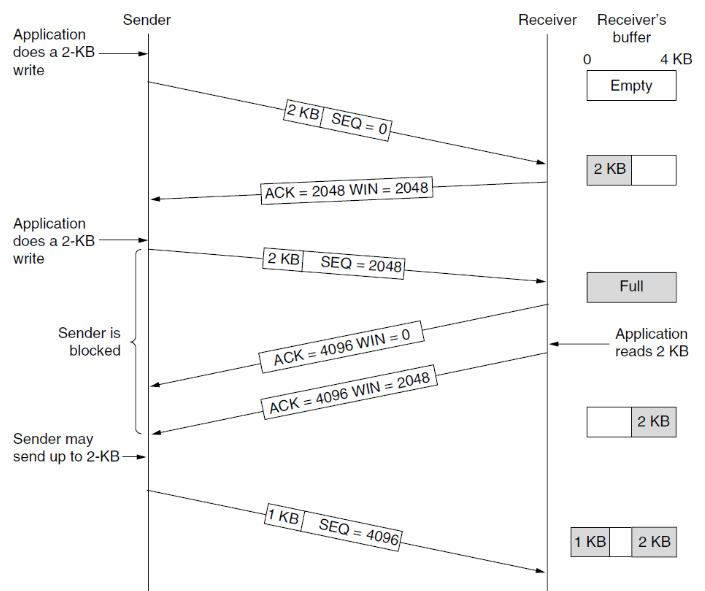

  • sliding windowalt text
  • dalay and piggyback ack for up to 500ms; Nagle’s Algorithm: send first piece and wait for ack to send the rest in one go; Clark’s Solution: when app read 1 byte at a time, send valid only when enough space is freed
  • SRTT: 0.875SRTT + 0.125R(R round trip time)
  • RTTVAR: 0.75 RTTVAR +0.25|SRTT - R|, RTO = min(1s, SRTT + 4*RTTVAR)
  • Congestion:
    • AIML
    • congestion widow(sender)
    • flow control window(recver)
    • use time between ack to determine max data rate and use AIML to determine window size
    • use threshold, slow start until threashhold or timeout, half the window size, thresh will be half window, then AI
    • 3 dupe = loss, fast retransmit, treat dupe ack as arrive of later package
    • Tahoe
      • on loss, update the thresh and windowsize, restart slowstart from 1 windows size
    • Reno

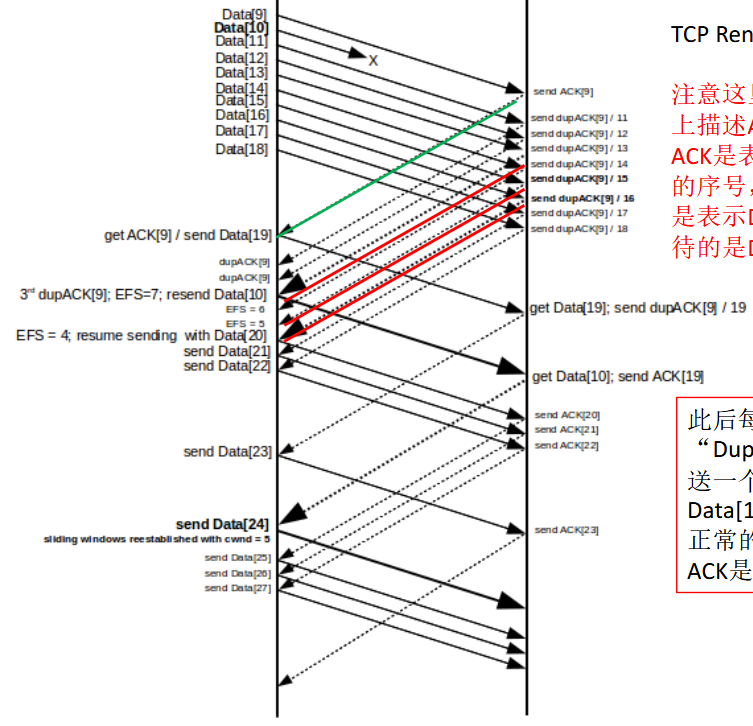

      • FastRecovery alt text
      • half the thresh and only lower to thresh, then AI
  • SACK, 3 sets of ranges
  • BBR: find the point when RRT start to increase and dilivery rate stoped to increase
    • Total data in flight = BtlBW $\times$ RTProp
    • BtlBW = max diliever rate
    • RTProp = min RRT

Chap 7 Application layer

  • DNS
    • udp

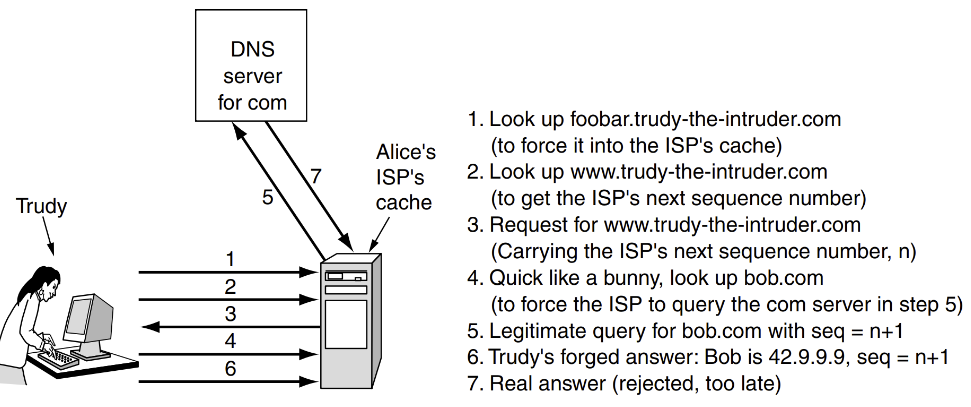

    • dns spoofingalt text
  • FTP
  • Email
    • SMTP: TCP25
    • MIME: like http
    • multimedia(multipart/alternative), boundary, --boundary--
  • HTTP
    • http2 need ot come back in same order
    • http3 quic(udp)
    • have package number for every package
